Каталог запчастей
-
Volvo Construction Equipment
-
EW160 SER NO 1001-1912
- Operator seat, pneumatic, Isri
Operator seat, pneumatic, Isri экскаватора Volvo Construction Equipment EW160 SER NO 1001-1912
Operator seat, pneumatic, Isri экскаватора Volvo Construction Equipment EW160 SER NO 1001-1912 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:33777
Наименование:Operator seat, pneumatic, Isri
Версия:14302812, 14302883

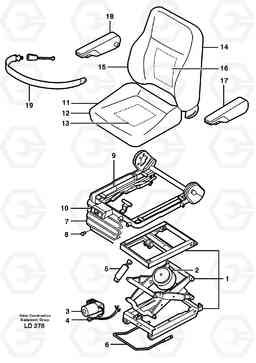

Operator seat, pneumatic, Isri EW160 SER NO 1001-1912
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 14370474 | Operator's Seat | 1 | |||
| 1 | VOE 11706323 | Spring Suspension Unit | 1 | ||
| 1 | VOE 11706323 | Spring Suspension Unit | 1 | ||
| 10 | VOE 11706322 | Control | 1 | ||
| 11 | VOE 11706319 | Seat | 1 | ||
| 11 | VOE 11706319 | Seat | 1 | ||
| 12 | VOE 11706081 | Upholstery | 1 | ||
| 12 | VOE 11706081 | Upholstery | 1 | ||
| 13 | VOE 11706320 | Heater | 1 | ||
| 13 | VOE 11706320 | Heater | 1 | ||
| 14 | VOE 11706317 | Backrest | 1 | ||
| 14 | VOE 11706317 | Backrest | 1 | ||
| 15 | VOE 11706079 | Upholstery | 1 | ||
| 15 | VOE 11706079 | Upholstery | 1 | ||
| 16 | VOE 11706318 | Heater | 1 | ||
| 16 | VOE 11706318 | Heater | 1 | ||
| 17 | VOE 11706313 | Arm Rest | 1 | ||
| 17 | VOE 11706313 | Arm Rest | 1 | ||
| 18 | VOE 11706314 | Arm Rest | 1 | ||
| 18 | VOE 11706314 | Arm Rest | 1 | ||
| 19 | VOE 11706312 | Hip Belt | 1 | ||
| 2 | VOE 3091058 | Air Bellows | 1 | ||
| 2 | VOE 3091058 | Air Bellows | 1 | ||
| 3 | VOE 11709423 | Compressor | 1 | ||
| 3 | VOE 11709423 | Compressor | 1 | ||
| 4 | VOE 11993178 | Реле | 1 | ||
| 4 | VOE 11993178 | Реле | 1 | ||
| 5 | VOE 11706086 | Shock absorber | 1 | ||
| 5 | VOE 11706086 | Shock absorber | 1 | ||
| 6 | VOE 11706087 | Handle | 1 | ||
| 7 | VOE 11706083 | Bellows | 1 | ||
| 7 | VOE 11706083 | Bellows | 1 | ||
| 8 | VOE 1699294 | Attachment kit | 1 | ||
| 8 | VOE 1699294 | Attachment kit | 1 | ||
| 9 | VOE 11706321 | Seat frame | 1 |
