Каталог запчастей
-
Volvo Construction Equipment
-
EC280 SER NO 1001-
- Protection over drivers cab, elevation kit 605 mm
Protection over drivers cab, elevation kit 605 mm экскаватора Volvo Construction Equipment EC280 SER NO 1001-
Protection over drivers cab, elevation kit 605 mm экскаватора Volvo Construction Equipment EC280 SER NO 1001- со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:13349
Наименование:Protection over drivers cab, elevation kit 605 mm
Версия:14302714

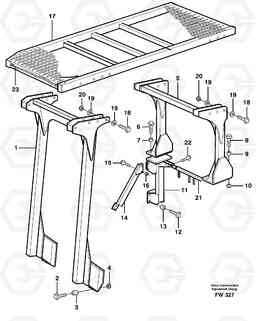

Protection over drivers cab, elevation kit 605 mm EC280 SER NO 1001-
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 965225 | Flange screw | 1 |
L = 35MM
|
||
| VOE 965225 | Flange screw | 1 |
L = 35MM
|
||
| 1 | VOE 14344031 | Опора | 1 | ||
| 10 | VOE 13963110 | Lock nut | 1 | ||
| 10 | VOE 13963110 | Lock nut | 1 | ||
| 11 | VOE 14344033 | Support section | 1 | ||
| 12 | VOE 968437 | Flange screw | 1 | ||
| 12 | VOE 968437 | Flange screw | 1 | ||
| 13 | VOE 14251026 | Вставка | 1 | ||
| 14 | VOE 14344034 | Опора | 1 | ||
| 15 | VOE 13965191 | Screw | 1 |
L = 30MM
|
|
| 15 | VOE 13965191 | Болт | 1 |
L = 30MM
|
|
| 16 | VOE 971099 | Flange lock nut | 1 | ||
| 16 | VOE 971099 | Flange lock nut | 1 | ||
| 17 | VOE 14260993 | Protecting roof | 1 | ||
| 18 | VOE 13948937 | Болт | 1 | ||
| 18 | VOE 13948937 | Болт | 1 | ||
| 19 | VOE 14053461 | Шайба | 1 | ||
| 19 | VOE 14053461 | Шайба | 1 | ||
| 2 | VOE 968437 | Flange screw | 1 | ||
| 2 | VOE 968437 | Flange screw | 1 | ||
| 20 | VOE 13963110 | Lock nut | 1 | ||
| 20 | VOE 13963110 | Lock nut | 1 | ||
| 21 | VOE 14344035 | Тарелка клапана | 1 | ||
| 22 | VOE 13965186 | Болт | 1 | ||
| 22 | VOE 13965186 | Screw | 1 | ||
| 23 | VOE 14344880 | 14344880 | 1 | ||
| 3 | VOE 14251026 | Вставка | 1 | ||
| 4 | VOE 13963110 | Lock nut | 1 | ||
| 4 | VOE 13963110 | Lock nut | 1 | ||
| 5 | VOE 14344032 | Опора | 1 | ||
| 6 | VOE 13968302 | Flange screw | 1 | ||
| 6 | VOE 13968302 | Flange screw | 1 | ||
| 7 | VOE 14251026 | Вставка | 1 | ||
| 8 | VOE 968298 | Flange screw | 1 | ||
| 8 | VOE 968298 | Flange screw | 1 | ||
| 9 | VOE 14251026 | Вставка | 1 |
